Nex Outdoor Standard
Floor-standing, 55" portrait display.
- 55" PCAP touch glass
- Intel i5, 16 GB RAM, 256 GB SSD
- Windows 11 OS
Overview
A closer look at Nex Outdoor.

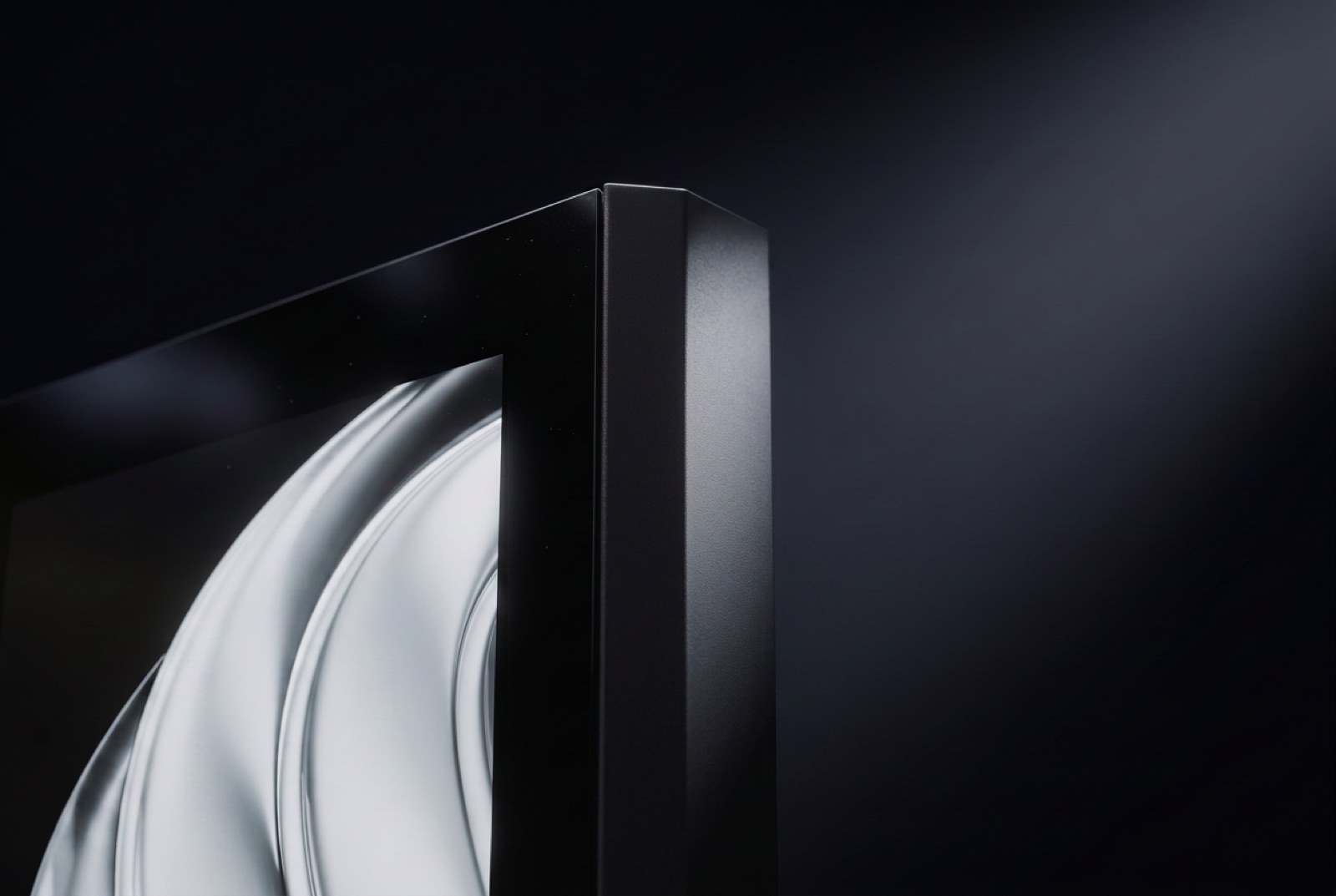

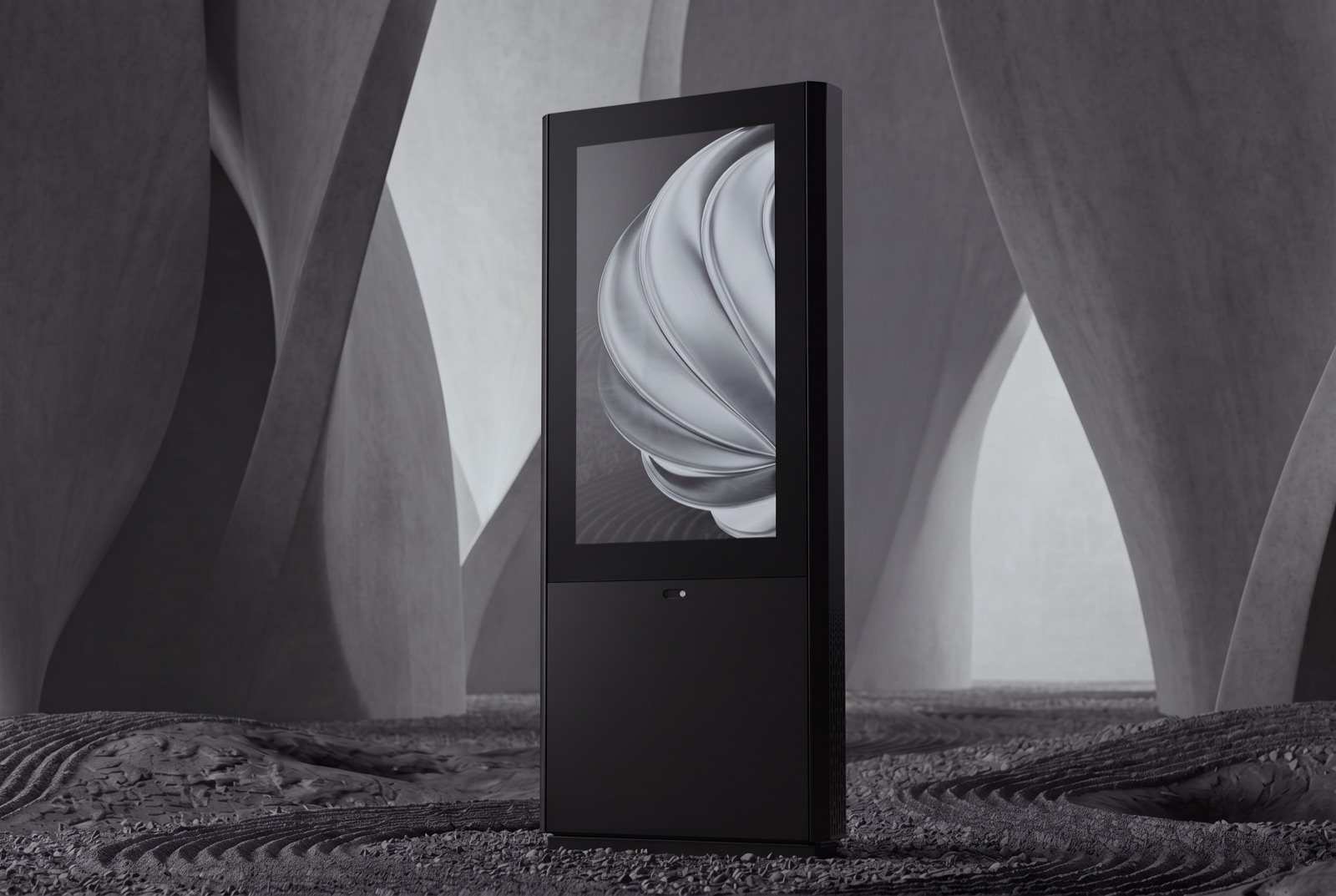

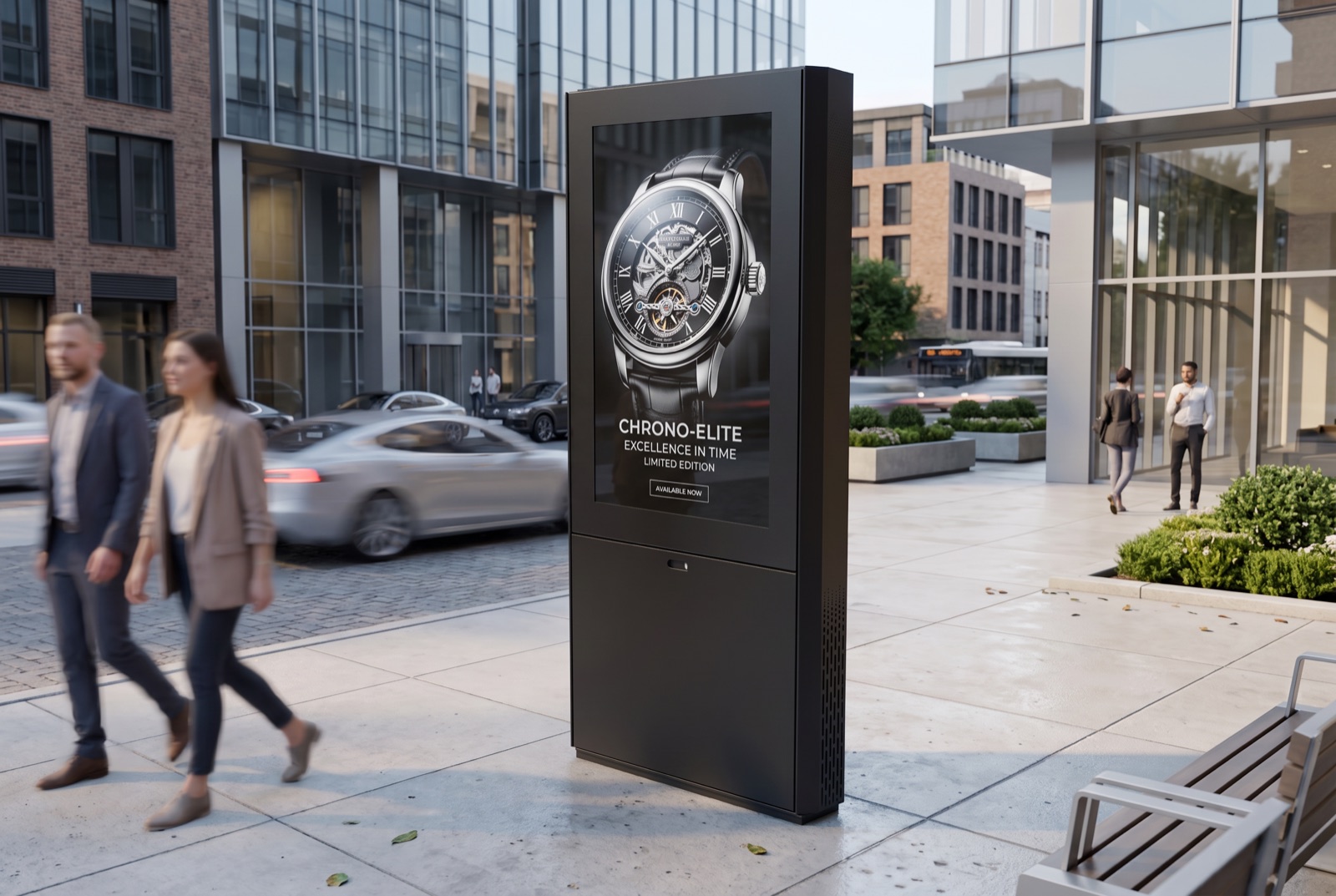

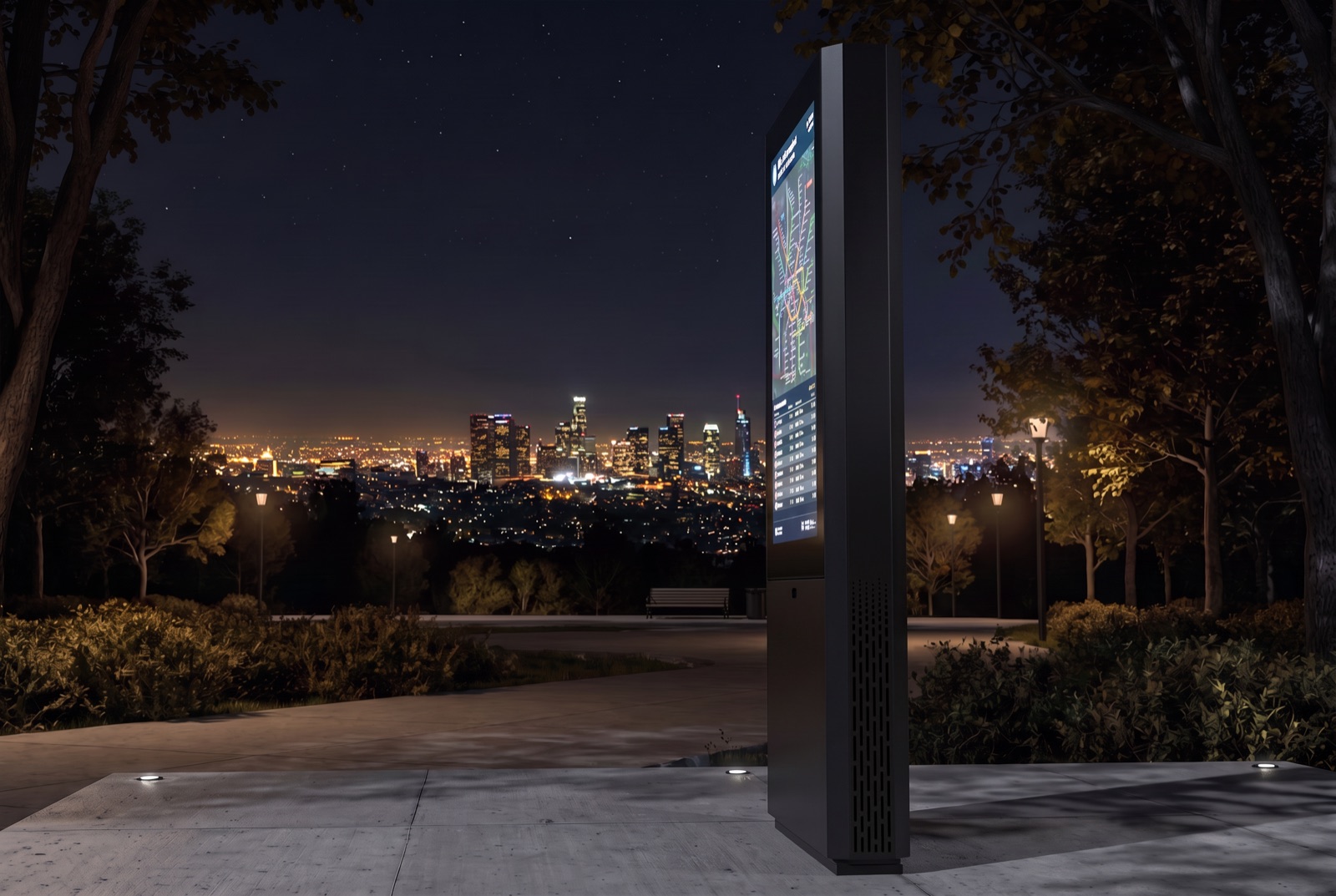

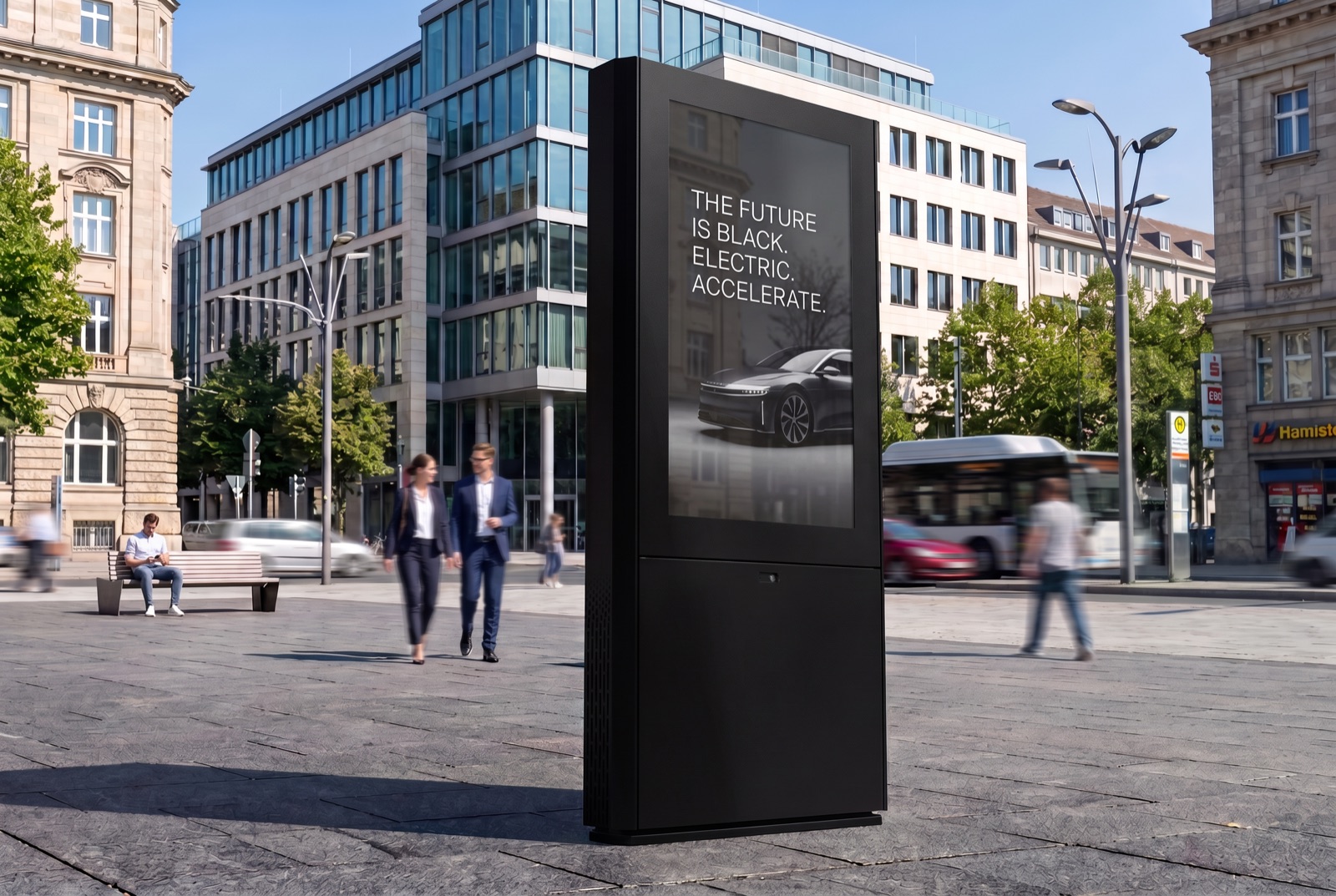

Nex Outdoor is made for public places: a slim, smooth body in zinc-protected carbon steel or powder-coated aluminium, sealed against cold, humidity and heat, and built to take weather, corrosion and vandalism while running around the clock. It comes with a round edge for a smoother feel or a sharp edge for a more compact look.
01
Sealed up to IP65

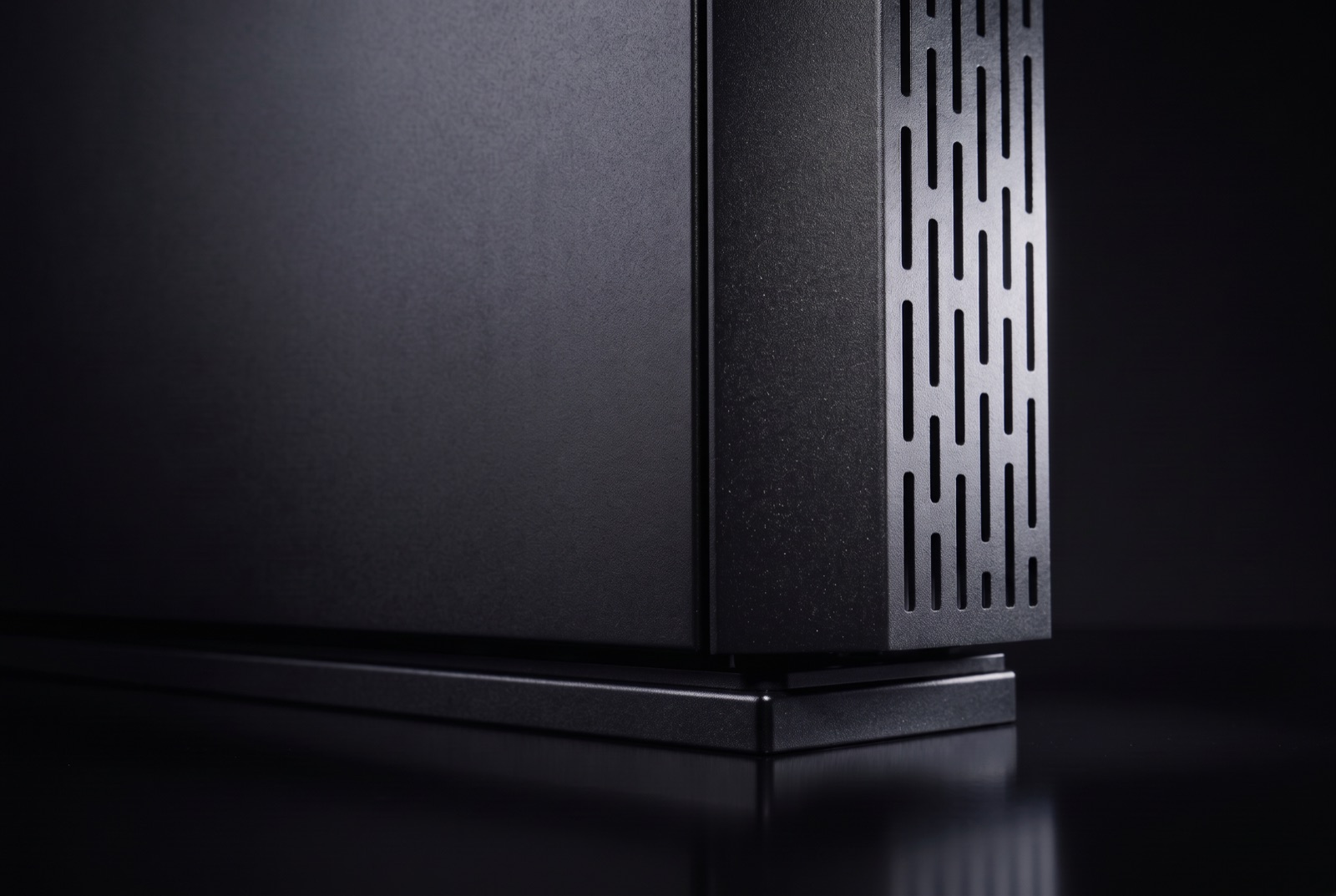

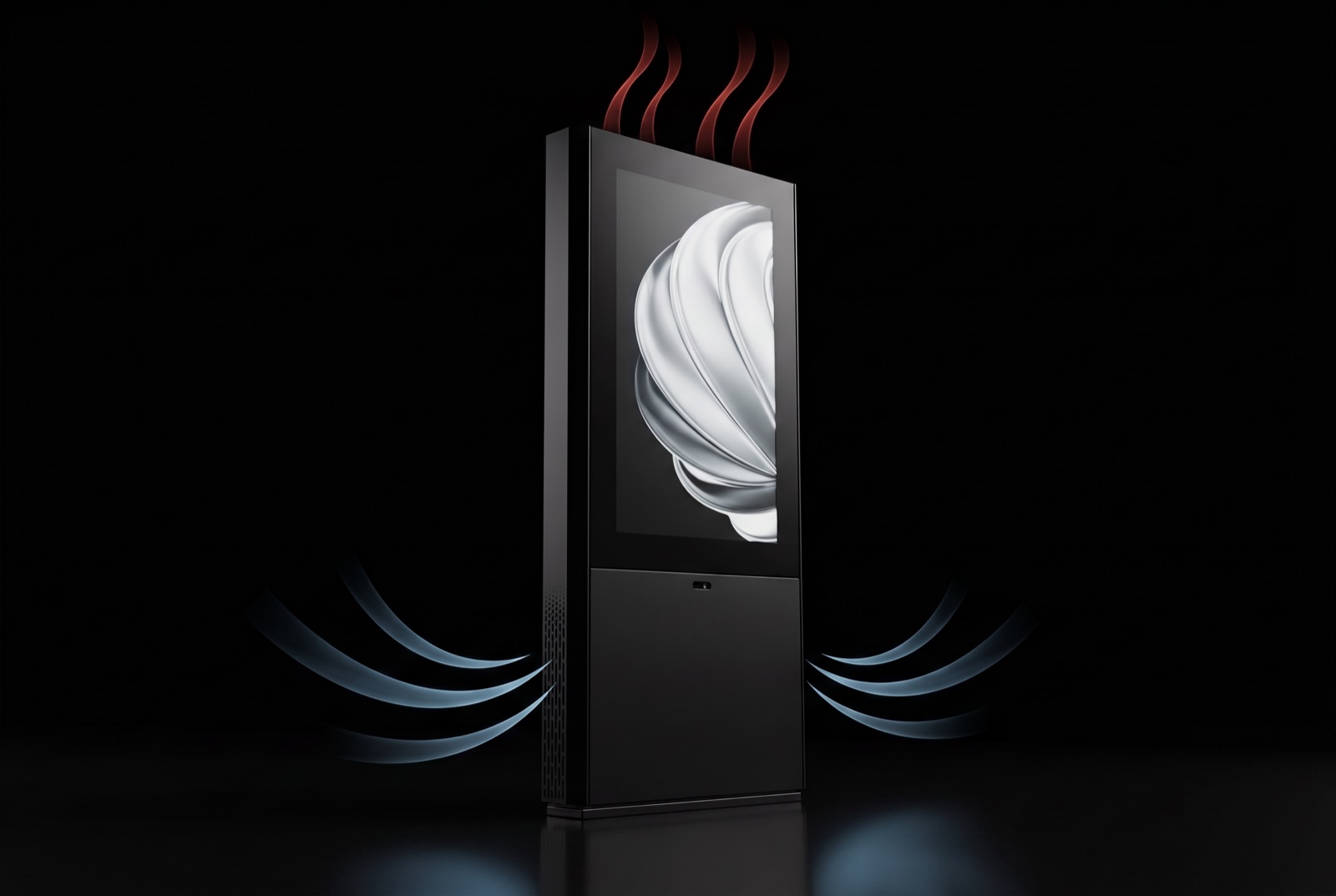

A closed body in zinc-protected steel or powder-coated aluminium, with ventilation that holds the electronics from −10 °C to 40 °C.
02
Sunlight-readable display
IPS panels reaching up to 4000 cd/m², bright enough to stay legible in direct sun and through the glare of a summer afternoon.
03
32–75" display options
Sizes from 32 to 75 inches, portrait or landscape, in single or double sided configurations.

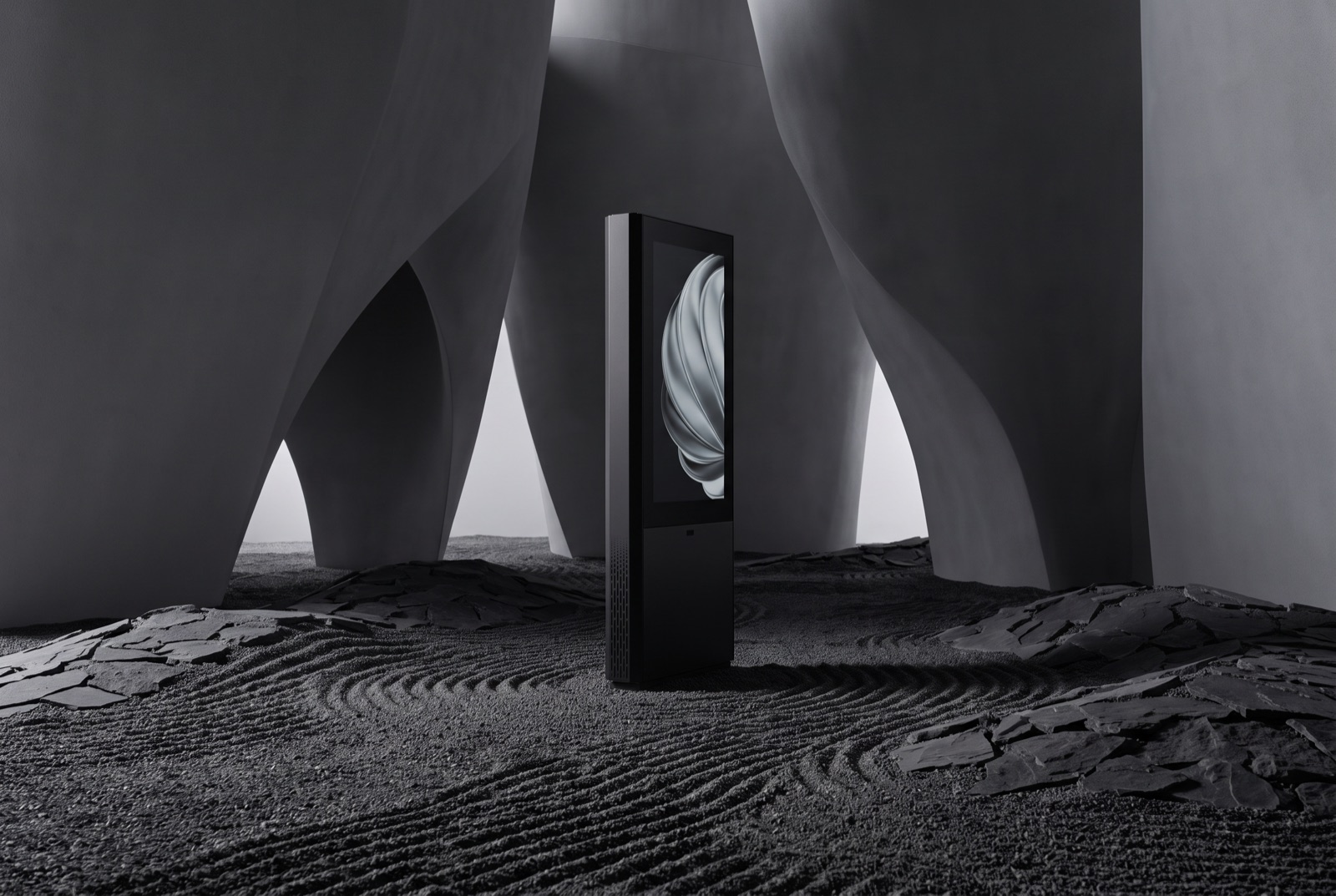

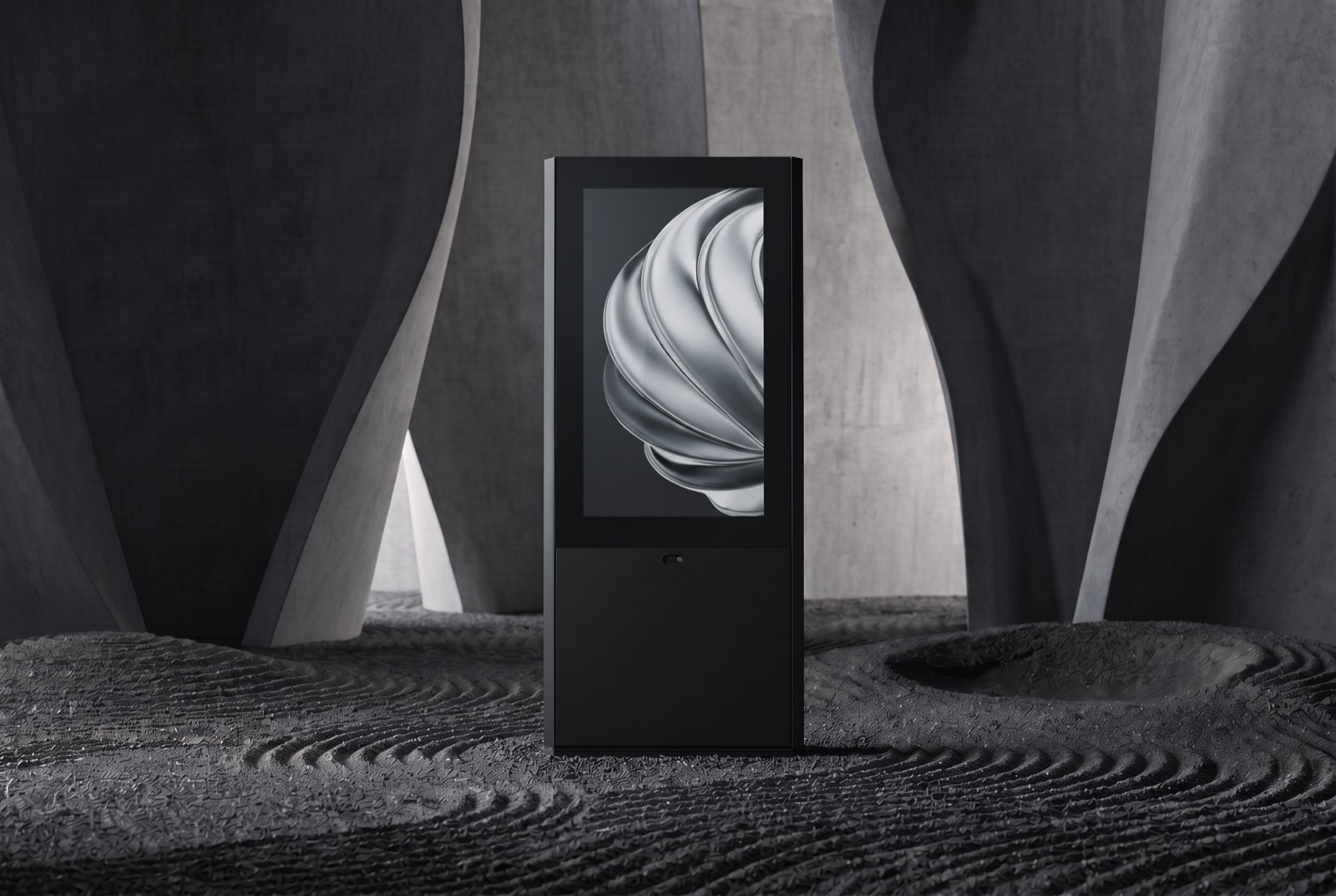

Gallery

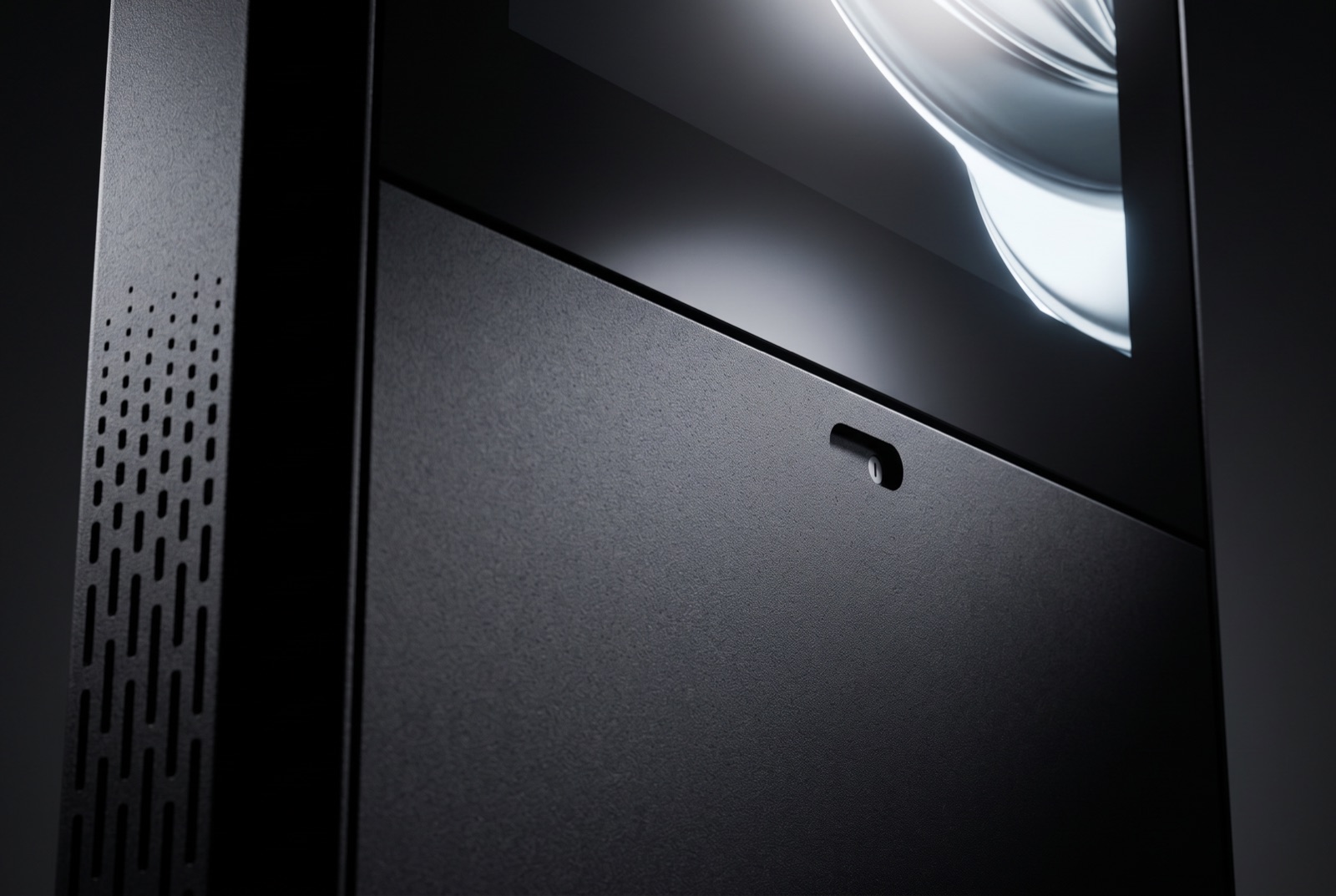

Detail
Technical specification
Datasheet- Display
- 32" to 75" IPS, edge-lit LED, up to 3,840 × 2,160 (UHD)
- Brightness
- Up to 4000 cd/m²
- Touch
- PCAP, up to 100 touch points
- Computer
- Intel i3 / i5 / i7, 4–16 GB RAM, 120–240 GB SSD
- OS
- Windows, Android
- Orientation
- Portrait or landscape, single or double sided
- Operating range
- −10 °C to 40 °C, 0–100% humidity, 24/7/365
- Power
- AC 100–240 V, 50/60 Hz
- Network
- Ethernet, Wi-Fi, 4G/5G
- Protection
- Up to IP65
- Add-ons
- Speakers, HVAC, anti-graffiti, 4G, Wi-Fi hotspot, camera, ticket printer, QR/barcode reader
Schematics

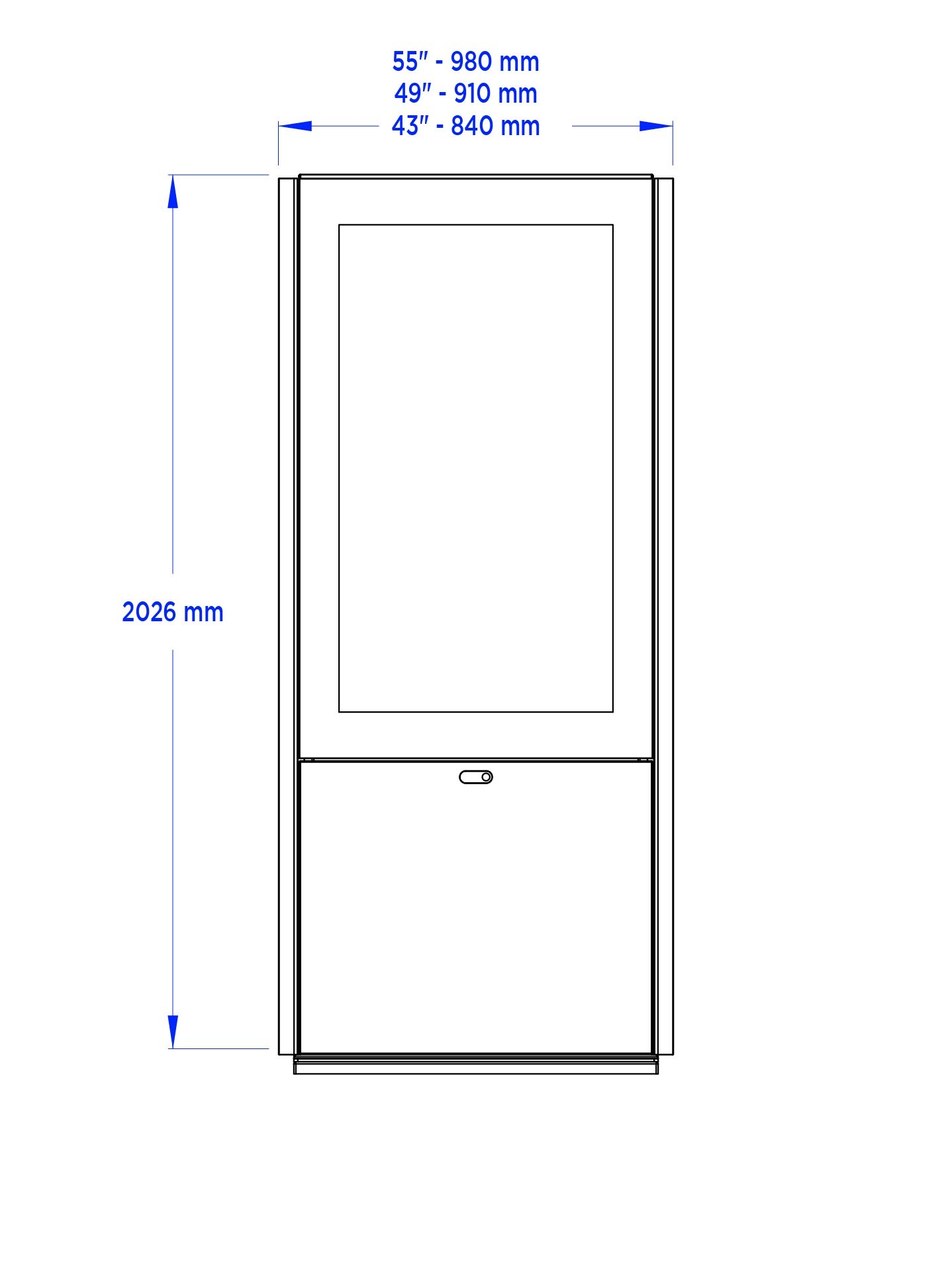

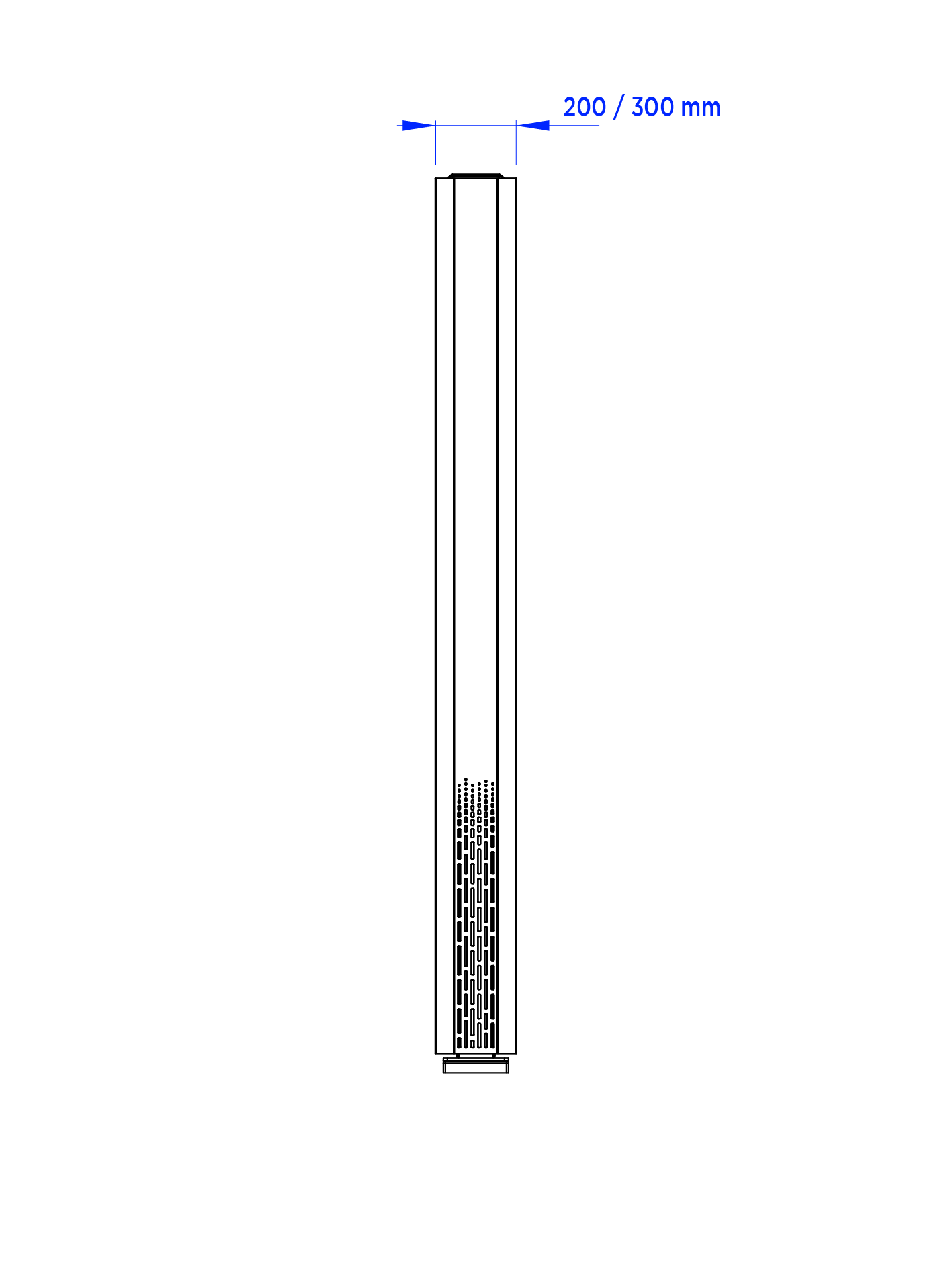

DrawingsDrawing placeholder
Drawing placeholder
Drawing placeholder
Configurations
Configuration suggestionsNex Outdoor Dual
Floor-standing, double sided 55" portrait display.
- Single or double sided 55" PCAP touch glass
- Intel i5, 16 GB RAM, 256 GB SSD
- Windows 11 OS
Nex Outdoor Sound
Floor-standing, 55" portrait display.
- 2× 10 W speakers
- Intel i5, 16 GB RAM, 256 GB SSD
- Windows 11 OS
